Description

A deep, diagonally-reinforced concrete coupling beam under a full cyclic loading protocol out to 12% chord rotation, reproducing test specimen CB24D, including its strength loss after the diagonal bars and hoops fracture.

Reference

Naish, Fry, Klemencic & Wallace (2013), ACI Structural Journal 110-S86; raw cyclic response digitized via DesignSafe-CI (NEES-2012-1100).

Model

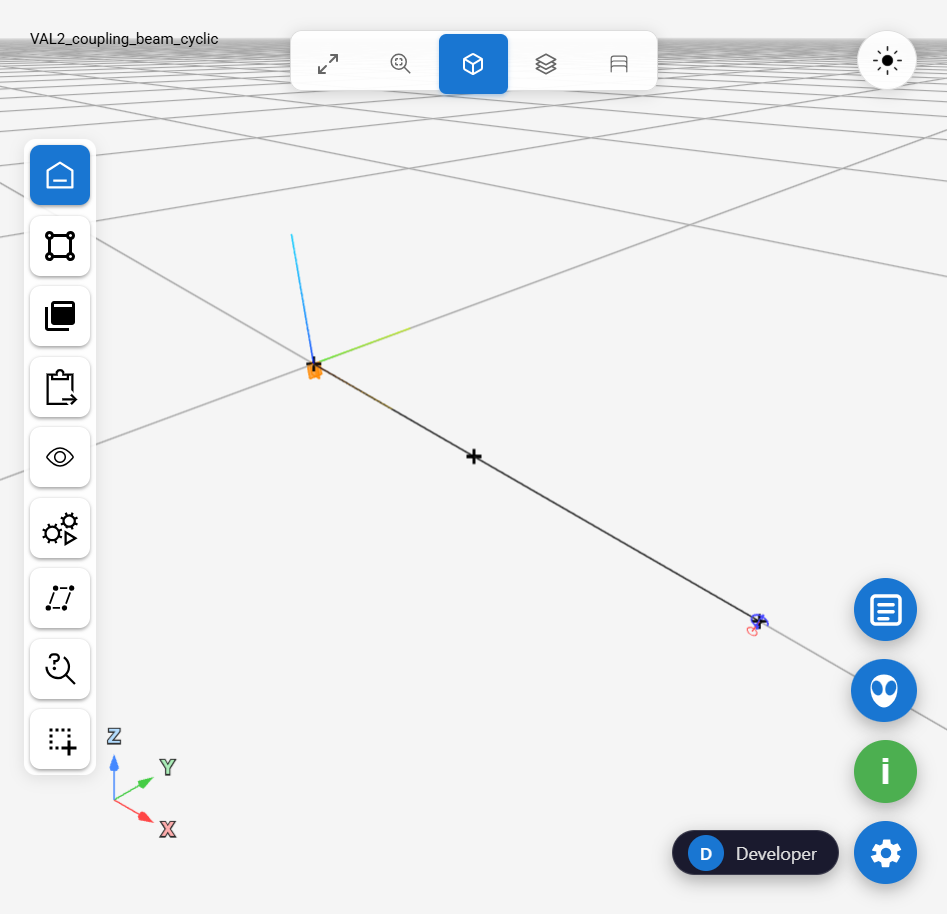

Two elastic beam segments, each at a reduced effective stiffness (30% of the gross-section stiffness, following ASCE 41 §6.7.2 guidance for coupling beams), flanking a concentrated shear hinge at the beam's midspan. The hinge's force–deformation envelope was calibrated directly to the specimen's own measured cyclic response. The assembly is fixed at one end and driven through a multi-level cyclic displacement protocol at the other, matching the specimen's own tested drift levels up to 12%. The hinge envelope falls away past 8% drift, with the lower negative-direction strength as measured, and a cumulative-degradation setting calibrated to the test makes each repeat cycle weaker than the last.

Shear hinge backbone (calibrated to the specimen)

Loading protocol applied

Response comparison

Full loading history, physical test vs. vfopro simulation.

Comparison

Conclusion
